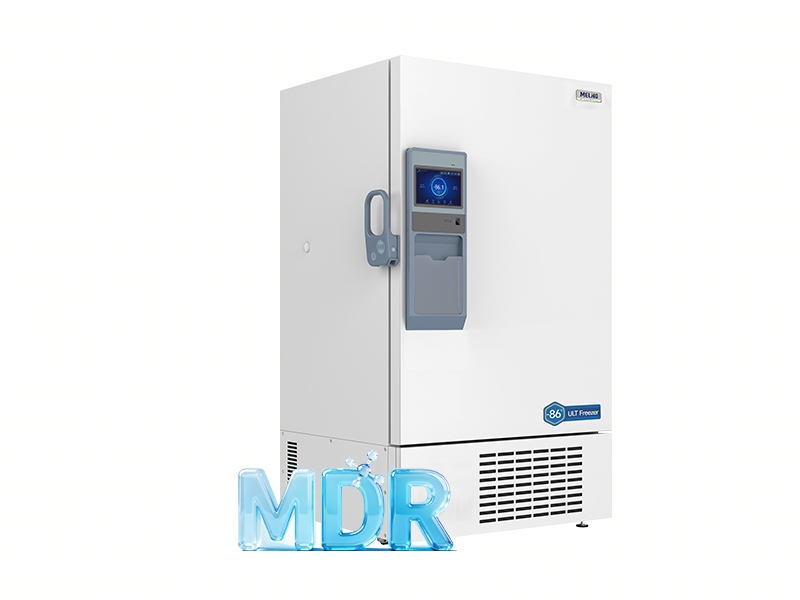

MDR Approved -86°C Dual Cooling System Ultra Low Temperature Freezer for Laboratory and Medical DW-HL780

•Two variable-frequency Refrigeration Systems

•UL/CE /MDR Certified

•HC Green Refrigerant

•Temperature Uniformity：3℃

•Power Consumption as 8.5kw/24h.

•10-inch Intelligent Touch Screen

•6 Sides VIP Vacuum Insulation Material

Request A Quote

Overview

M-Twindrive -86℃ Ultra Low Temperature Freezer built up by dual independent refrigeration systems and the Dual Cooling Systems offers the highest level of protection, if one system unexpectedly fails,the other can maintain the freezer around the -80℃. Valuable and irreplaceable samples can always be securely with the highest confidence even if the compressor fails.

Two High-efficiency Refrigeration Systems

Two high-efficiency refrigeration sytems work independently,if one system fails,the other can still maintain the temperature at -80℃, safe, secure and reliable.

Frequency Conversion Technology

Frequency conversion technology is adopted to control the compressor speed in real time by adjusting the output frequency to ensure more balanced temperature,thuseffectively saving energy.

Applicable to Various Power Supply Environments

It can work normally under various power supply environments such as 110V60Hz, 220V50Hz, 220V60Hz, ect.

Stable Internal Temperature

Globally ranked SECOP compressors maintain a stable -86℃ ultra low temperature environment, that support efficient sample storage.

Human-oriented

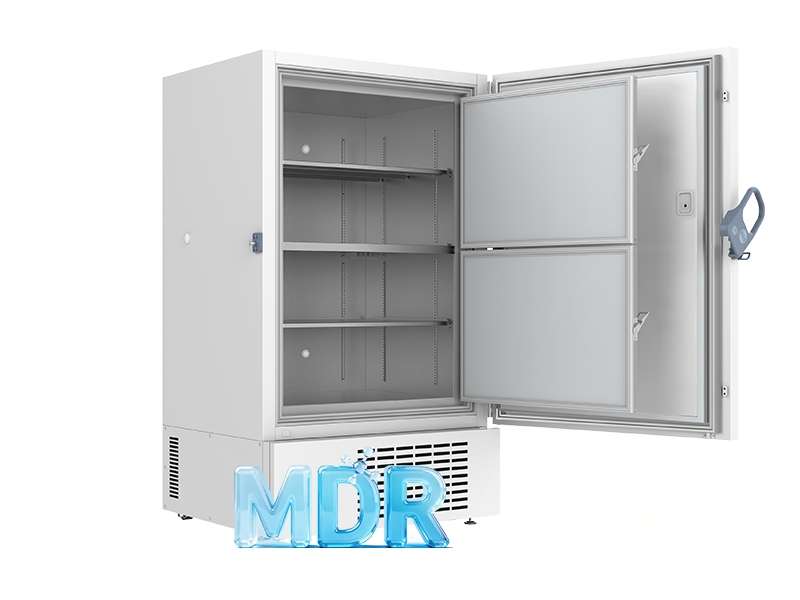

· 3 division plates are equipped inside to divide the storage area into 4 layers for convenient sample placement; 2 internal doors are also equipped to reducing frosting caused by door opening;

· Stainless steel (SUS304) as the internal material, is durable and easy-to -clean;

· Equipped with 4 heavy casters and 2 leveling feet for easy movement and fixation of the equipment.

· Ergonomic handle, smooth track and high-precision pressure relief valve make it easier to open and close the door.

Features

Two high-effiency refrigerant systems work indepently, if one system fails, the other can still maintain the temperature at -75℃
Inverter technology, two inverter compressors
8.5 Kwh daily consumption
High-definition and easy-handling control panel to set the temperature range from -40°C to -86°C with digital temperature display precision in 1°C
Lockable door, keyboard lock and password access prevents any unauthorized access and operation
Ultra low deep freezer with stainless steel inner materials and painted steel panel outer materials, and 4 universal casters for easy moving
Adjustable 3 stainless steel shelves with inner door and double silicon gasket seal
Options: Inkless chart recorder,card and finger print access,freezing box,freezing rack,CO2 back up system
China's leading manufacturer of ultra-low temperature freezer

Scope of Application

Ultra low deep freezer DW-HL780 can be used as laboratory freezer, ultra low medical freezer and deep freezer，suitable for use in hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities, military enterprises, deep-sea fishing companies, etc.

Product Brochure Download

Please click the OneDrive link to download the product brochure: Product Brochure - Meling Biomedical

Specifications

-86℃ Ultra-low Temperature Freezer
Model	DW-HL780
Power Supply	110~230/50-60
Capacity(L)	780
Internal size(WDH)mm/Inch	8656961286/ 34.127.450.6
External size(WDH)mm/Inch	120510251955/ 47.440.477.0
Package size(WDH)mm/Inch	132011552177/ 52.045.585.5
NW/GW(Kgs)	331/440(wood packing)
Performance
Temperature range	-40～-86℃
Ambient temperature	16-32℃
Cooling performance	-86℃
Climate class	N
Controller	Microprocessor
Display	10‘’HD Intelligent touch screen
Refrigeration
Compressor	2pcs
Cooling method	Direct cooling
Defrost mode	Manual
Refrigerant	Mixture gas
Insulation thickness(mm)	L/R:130,B:130
Construction
External material	Cold rolled steel
Inner material	Stainless steel
Shelves	3(stainless steel)
Access port	3pc. Ø 25 mm
Casters	4+(2 leveling feet)
Data Logging/Interval/Memory capacity	USB/Record every 5 minutes / 10 years
Backup battery	Yes
Alarm
Temperature	High/Low temperature,High ambient temperature
Electrical	Power failure , Low battery,Battery power detection failure
System	Sensor failure,Communication error, Condenser overheating,Door ajar
Accessory
Freezer rack model	ZKML304-552B-CT
Freezer rack/box (quantity）	24/600

Related Products

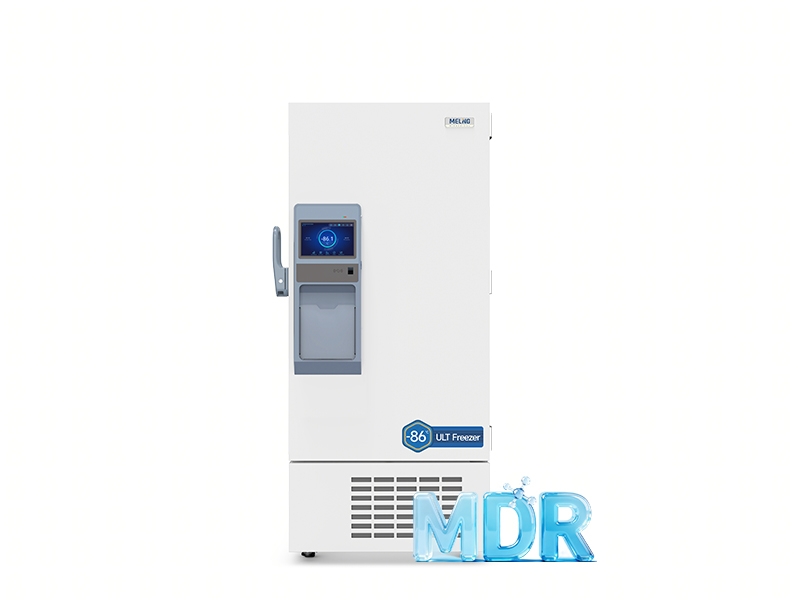

MDR Approved-86°C Dual core System Ultra Low Freezer Freezer 530 liters for Laboratory DW-HL530
