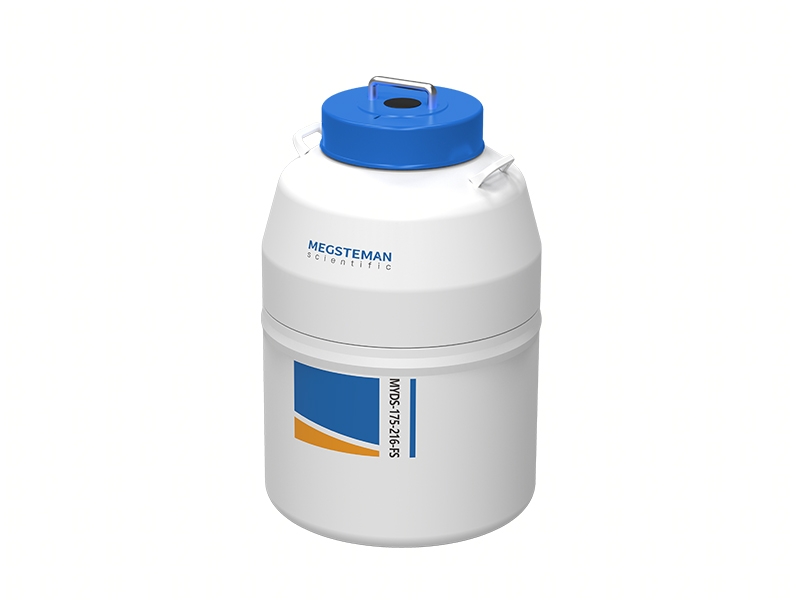

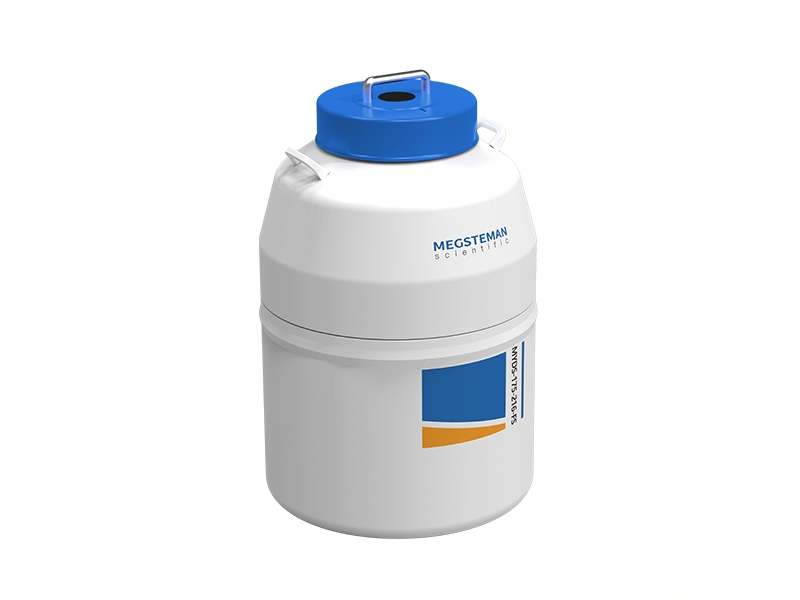

Small Vapor Phase Tank LN2 MYDS-175-216P-FS for Lab

Small Vapor Phase Tank LN2 MYDS-175-216P-FS for Lab

Optional vapor phase & liquid phase
Intelligent fluid replenishment
Aluminum alloy liquid nitrogen containers
Real-time temperature and liquid level monitoring

Overview

The professional liquid nitrogen tank is suitable for users such as scientific research institutes, laboratories,reproductive centers, disease control centers, etc. who need to store reagents,vaccines, embryos and other biological samples in a low-temperature environment for a long time.medical and health industries, scientific research laboratories of universities and colleges as well as other fields.

Building upon traditional aluminum alloy liquid nitrogen containers

Real-time temperature and liquid level monitoring

Automatic liquid replenishment function

Optional Vapor Phase & Liquid Phase

Features

* Optional Vapor Phase & Liquid Phase: The vapor phase or liquid phase storage method can be freely selected, and the storage area temperature is constant and close to the liquid nitrogen temperature when the vapor phase is used.

* Intelligent Fluid Replenishment: Through precise monitoring of internal temperature and liquid level in LN2 tanks,complemented by an automated refill system, intelligent management of liquid nitrogen replenishment is achieved.

Scope of Application

Meling Liquid Nitrogen Tank suitable for medical and health industries, scientific research laboratories of universities and colleges as well as other fields.

Specifications

Meling Liquid Nitrogen Tank
Model	MYDS-175-216P-FS
Geometric volume(L)	175
Caliber(mm)	216
Cryobox Specifications	9*9
Square bucket quantity(ea)	6
Square bucket size(mm)	139*141
Square bucket box size(mm)	132*132
Number of square bucket layers	10
Quantity of 2ml internal revolve tube	6000
Height	1090
Outer diameter (mm)	678
Empty weight(kg)	66
Lock cover	Standard
Bucket	Standard
Cryobox	Standard
Cryogenic gloves	Opention
Transport trolley	Opention
