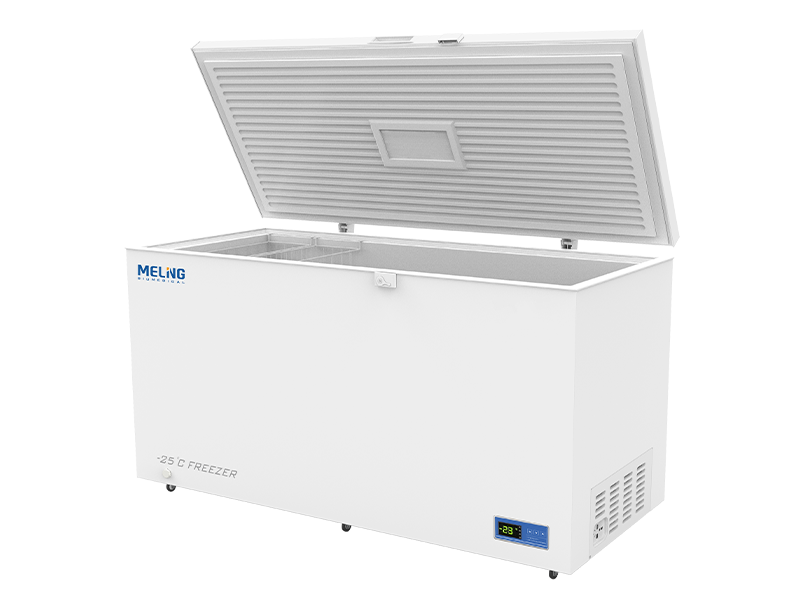

-10°C ~-25°C Low-temperature Biomedical Freezer DW-YW508A

•Stable temperature performance

•High quality refrigeration system

•High-precision temperature control

•Reliable audible and visual alarm system

•Cost-effective biomedical chest freezer

Request A Quote

Overview

Meling -10°C ~-25°C low temperature biomedical freezer is specially designed in medical and laboratory grade. This low temp freezer brings out stable performance in refrigeration and temperature control. And this chest deep freezer provides you with optional capacity in 508L to meet different storage needs. It is equipped with environmentally friendly Freon-free refrigerant and high-efficiency compressor, which can ensure energy-saving and fast refrigeration.

Refrigeration System

The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise. The condenser installed on the bottom ensures temperature stability and system reliability.

Temperature Control

The high-precision computerized temperature control system ensures an adjustable temperature within a range from -10 to -25℃ inside the cabinet.

Security System

The well-developed audible & visual alarm system (sensor failure alarm, high temperature/low temperature alarm, etc.) makes it safer for storage; The turn-on delay and stopping interval protection function can ensure reliability in running.

Human-oriented

The airbag-type built-in door gasket is dustproof and easy to clean. The design of upward door opening and the balancing door hinge facilitate door opening; the built-in shelves are convenient for placement of things.

Features

The digital temperature display can indicate operating status clearly
The high-precision microcomputer temperature control system enables users to set the temperature inside the cabinet within a range from -10℃ to -25℃.
The well-developed audible & visual alarm system makes it safer for storage
The turn-on delay and stopping interval protection function can ensure reliability in running
The door is equipped with a lock, improving security of sample storage.
The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise
The condenser installed on the bottom ensures temperature stability and system reliability
The CFC-free polyurethane foam technology and the thicker insulating layer can improve the effect of thermal insulation

Mappings

Scope of Application

Biomedical chest freezer suitable for freezing of ice bars and storage of various things needing refrigerated storage such as reagent, etc. Suitable for use in hospitals, clinics, health and disease prevention systems, laboratories in colleges & universities, the frozen food industry and catering industry, etc.

Product Brochure Download

Please click the OneDrive link to download the product brochure: Product Brochure- Meling Biomedical

Specifications

-10°C ~-25°C Biomedical Freezer
Model	DW-YW508A
Cabinet type	Chest
Capacity(L）	508
Internal size(WDH)mm	1504545673
External size(WDH)mm	1650735880
Package size(WDH)mm	17758521061
NW/GW(Kgs)	74/95
Performance
Temperature range	-10～--25℃
Ambient temperature	16-32℃
Cooling performance	-25℃
Climate class	N
Controller	Microprocessor
Display	Digital display
Refrigeration
Compressor	1pc
Cooling method	Direct cooling
Defrost mode	Manual
Refrigerant	R134a
Insulation thickness(mm)	70
Construction
External material	PCM
Inner material	PCM
Coated hanging basket	2
Door lock with key	Yes
Casters	6（2 casters with brake)
Alarm
Temperature	High/Low temperature
System	Sensor failure
