-10°C ~-25°C Low Temperature Freezer Biomedical Freezer DW-YL450

•Two compressors for temperature control separately

•Environmentally friendly Freon-free refrigeration system

•Dustproof door gasket can be easily cleaned

•High-precision microcomputer temperature control

•Audible & visual security system

Request A Quote

Overview

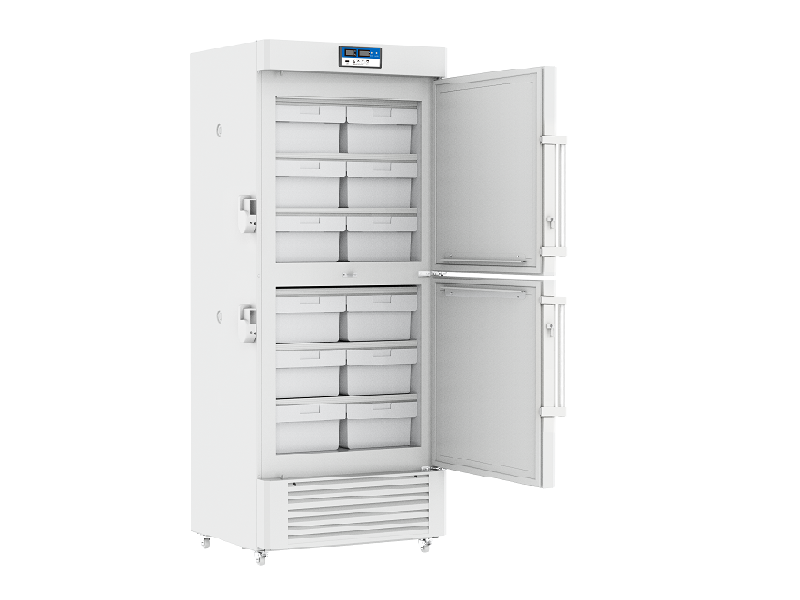

Meling -10°C ~-25°C Two chambers biomedical freezer DW-YL450 is special for medical freezer and lab freezer. This low temperature freezer is designed with two compressors and two chambers, which allows you to control the upper chamber and lower chamber independently. And the high-precision microcomputer temperature control system has the ability to set the temperature inside the cabinet in the range of -10°C ~-25°C. The built-in door gasket can perfect maintain a constant inside temperature and is easy to clean. The low temp freezer is best for storage of various medical and scientific materials, including reagent, and more.

Environmentally Friendly Refrigeration System

The environmentally friendly freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise.

High-precision Temperature Control

The high-precision computerized temperature control system ensures an adjustable temperature within a range from -10 to -25℃ inside the cabinet. The freezer is equipped with two compressors, so independent control of the upper chamber and lower chamber can be realized.

Audible & Visual Security System

The well-developed audible & visual alarm system (sensor failure alarm, door ajar alarm, high temperature/low temperature alarm,power failure,low battery, communication failure, etc.) makes it safer for storage valued samples.

Features

The digital temperature display can indicate operating status clearly
The high-precision microcomputer temperature control system enables users to set the temperature inside the cabinet within a range from -10℃ to -25℃
The environmentally friendly freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise
The CFC-free polyurethane foam technology and the thicker insulating layer can improve the effect of thermal insulation
The well-developed audible & visual alarm system makes it safer for storage
The door is equipped with a lock, improving security of valued sample storage

Mappings

Scope of Application

Biomedical 2 chambers freezer DW-YL450 suitable for freezing of ice bars and storage of various things needing refrigerated storage such as reagent, etc. Suitable for use in hospitals, clinics, health and disease prevention systems, laboratories in colleges & universities, and catering industry, etc.

Product Brochure Download

Please click the OneDrive link to download the product brochure: Product Brochure- Meling Biomedical

Specifications

-25℃ Biomedical Freezer
Model	DW-YL450
Cabinet type	Vertical
Capacity(L）	450
Internal size(WDH)mm	【650570627】2 / 【25.5922.4424.69】2
External size(WDH)mm	8567891960 / 33.731.0677.17
Package size(WDH)mm	9608702144 / 37.834.2584.41
NW/GW(Kgs)	136/165
Performance
Temperature range	-10～-25℃
Ambient temperature	16-32℃
Cooling performance	-25℃
Climate class	N
Controller	Microprocessor
Display	Digital display
Refrigeration
Compressor	2pcs
Cooling method	Direct cooling
Defrost mode	Manual
Refrigerant	R600a
Insulation thickness(mm)	D:76, L/R:80, B:80
Construction
External material	PCM
Inner material	Aluminum plate with spraying/ Stainless steel /HIPS
Shelves	12(ABS)
Door lock with key	Yes
Door	2
Access port	2pcs. Ø 23 mm
Casters	4(2 casters with brake)
Data logging/Interval/Memory capacity	USB/Record every 10 minutes / 100,000data
Backup battery	Yes
Alarm
Temperature	High/Low temperature,High ambient temperature
Electrical	Power failure,Low battery
System	Sensor failure,Door ajar, Main board Communication error,Recorder not connected/alarm not activated
Accessories
Standard	RS485,Remote alarm contact
