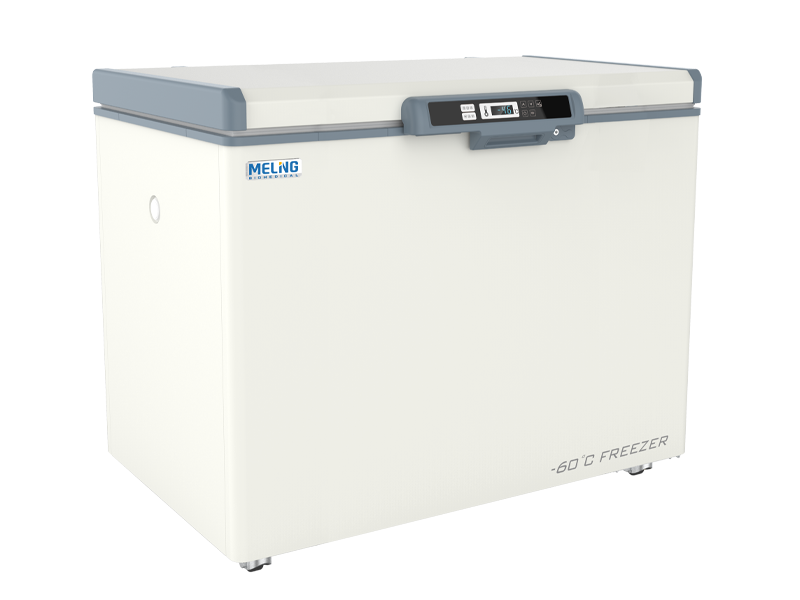

-60°C Medical Deep Freezer DW-GW270

•High efficiency Refrigeration system

•Two-layer heat insulating foamed door

•High-precision Temperature control system

•Large-area finned condenser for heat dissipation

•laboratory/medical/tuna deep freezer

Request A Quote

Overview

Meling -30°C~-60°C Deep Chest freezer DW-GW270 medical/lab/tuna freezer is equipped with high-quality refrigeration system for fast cooling. The high-precision temperature control system can display various parameters simultaneously, including power voltage, temperature inside the cabinet and environmental temperature, which can indicate the operation status clearly. And you are free to set the temperature inside the cabinet in the range of -30°C to -60°C. The two-layer heat insulation foamed door with airbag-typed outer steal can prevent loss of refrigerating capacity in an effective way. The liner is made of 304 stainless steel, which is safe for medical use.

High efficiency Refrigeration system
Freon-free refrigerant, compressor supplied by an international famous brand and EBM fan can guarantee fast cooling and are energy-saving and environmentally friendly. Refrigerating circuit with proprietary intellectual property rights ensures high efficiency and stability. Two-layer heat insulating foamed door and the insulation design of the outer door system with multiple patents can prevent loss of refrigerating capacity in an effective way.
Six sides of the cabinet are made from high-performance vacuum insulation material, improving thermal insulation performance to a large extent.

High-precision Temperature control system
High-precision microcomputer temperature control system and platinum resistor temperature sensors ensure more precise temperature control.

Human-oriented Design
High-quality steel plate structure with phosphate coating, stainless steel liner and low noise design can create a comfortable environment.

Features

The digital temperature display can show various parameters simultaneously, such as temperature inside the cabinet, power voltage and environmental temperature, indicating operating status clearly.
The high-precision microcomputer temperature control system and platinum resistor temperature sensors enable users to set temperature inside the cabinet within a range from -30℃ to -60℃.
The compressor supplied by an international famous brand and EBM fan is powerful, energy-saving and highly efficient.
The large-area finned condenser is characterized by a space equal to or less than 2mm between fins, providing a large area for heat dissipation and satisfactory performance.
The two-layer heat insulating foamed door with airbag-typed outer seal and the insulation design of the outer door system with multiple patents can prevent loss of refrigerating capacity in an effective way.
The six sides of the cabinet are made from high-performance vacuum insulation material, improving thermal insulation performance to a large extent.
The well-developed alarm system has multiple alarm functions: high temperature/low temperature alarm, door opening alarm, power outage alarm, abnormal voltage alarm, sensor failure alarm, low battery alarm, alarm of poor heat dissipation of condenser, system failure alarm, etc. The turn-on delay and stopping interval protection function can ensure reliability in running.
The keyboard lock function and password protection function can prevent any adjustment of operating parameters without permission.
The rotating handle facilitates door opening The adjustable layered structure is convenient for storage of various things.
The liner stainless steel deep freezer for medical use is low- temperature tolerant and corrosion-resistant, which has a long service life and is easy to clean.

Mappings

Scope of Application

Meling Deep freezer DW-GW270 can be used as laboratory freezer，medical freezer， professional tuna storage freezer，Suitable for use in scientific research, cryogenic test on special materials,low temperature resistance test on biological materials, vaccines, biological products and military products, etc. Suitable for use in research institutions, the electronic industry, the chemical industry, hospitals, the health & disease prevention system, laboratories in colleges & universities, military enterprises, etc.

Specifications

-60℃ Deep Freezer
Model	DW-GW270
Cabinet type	Chest
Capacity(L）	270
Internal size(WDH)mm	1019465651
External size(WDH)mm	1245775929
Package size(WDH)mm	1332810975
NW/GW(Kgs)	94/102
Performance
Temperature range	-30～-60℃
Ambient temperature	16-32℃
Cooling performance	-60℃
Climate class	N
Controller	Microprocessor
Display	Digital display
Refrigeration
Compressor	1pc
Cooling method	Direct cooling
Defrost mode	Manual
Refrigerant	Mixture gas
Insulation thickness(mm)	110
Construction
External material	Cold rolled steel sheet
Inner material	Stainless steel
Coated hanging basket	1
Door lock with key	Yes
Foaming lid	Optional
Access port	1pc. Ø 25 mm
Casters	4（2 caster with brake)
Backup battery	Yes
Alarm
Temperature	High/Low temperature
Electrical	Power failure
System	Sennor failure
