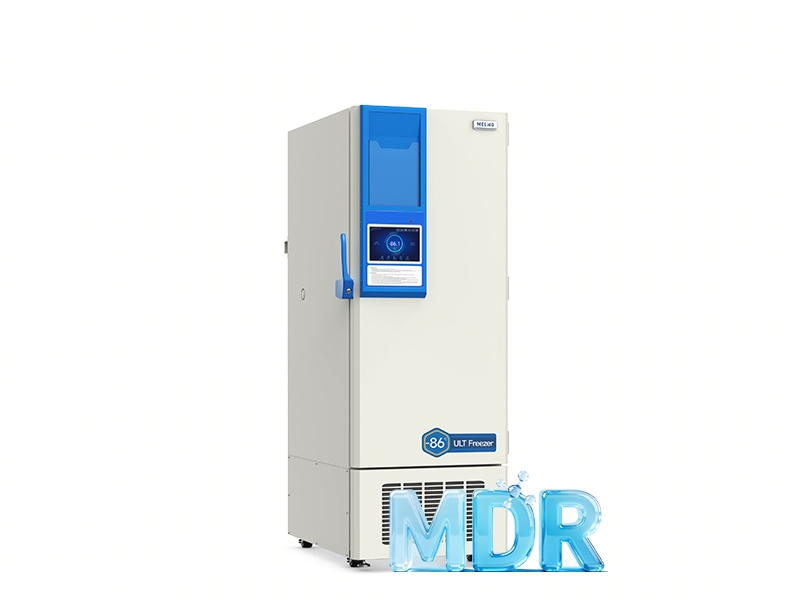

Meling Biomedical -86℃ ULT Laboratory Freezer DW-HL398S with HC Refrigerant

Meling Biomedical -86℃ ULT Laboratory Freezer DW-HL398S with HC Refrigerant

•Two-stage cascade systems

•10''LCD touch screen

•Hydrocarbon refrigerant

•Two inverter compressors

•VIP insulation foaming

Request A Quote

Overview

M-Cascade system ULT freezer that consists of two stages cascade cooling technology with absolute hydrocarbon refrigerant, which are R290 and R170 as natural gas. The inverter compressors programmed to help energy saving under long period preservation or provide fast temperature recovery while frequently door open to maintain specimens liveness.

Two-stage Cascade & Variable Frequency Drive Refrigeration

High effiency frequency conversion compressors enable the operating power to be automatically adjusted according to the heat load,making the equipment energy saving.

Applicable to Various Power Supply Environments

It can work normally under various power supply environments such as 110V60Hz, 220V50Hz, 220V60Hz, ect.

Stable Internal Temperature

Standard SECOP compressors maintain a stable -86℃ ultra low temperature environment, that increases efficient sample storage.

Excellent Thermal Insulation Performance

The design of foam inner doors, built-in vacuum insulation board and triple independent silicone sealing strip design make the insulation performance excellent.

Human-oriented

· Ergonomic handle, smooth track and high recision pressure relief valve make it easier to open and close the door;

· Stainless steel (SUS304) as the internal material, is durable and easy-to -clean;

· Equipped with 4 heavy casters and 2 balancing feet for easy movement and fixation of the equipment.

Features

Inverter technology, two inverter compressors
High-definition and easy-handling control panel to set the temperature range from -40°C to -86°C with digital temperature display precision in 1°C
Lockable door, keyboard lock and password access prevents any unauthorized access and operation

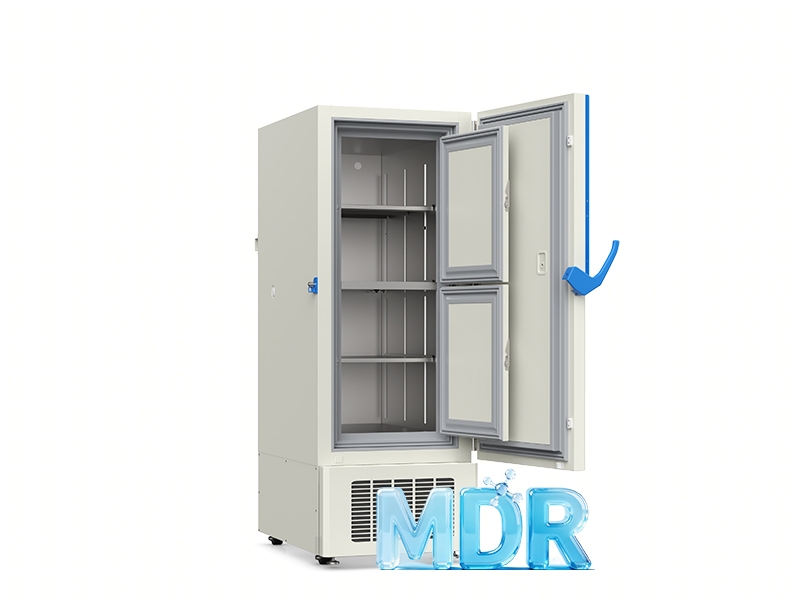

Adjustable 3 stainless steel shelves with inner door and double silicon gasket seal
China's leading manufacturer of ultra-low temperature freezer

Scope of Application

Ultra low deep freezer DW-HL398S can be used as laboratory freezer, ultra low medical freezer and deep freezer，suitable for use in hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities, military enterprises, deep-sea fishing companies, etc.

Specifications

-86℃ Ultra-low Temperature Freezer
Model	DW-HL398S
Capacity(L)	398
Internal size(WDH)mm/Inch	4406961266/ 17.3227.449.84
External size(WDH)mm/Inch	78510411947/ 30.9140.9876.65
Package size(WDH)mm/Inch	86011602132/ 33.945.783.9
NW/GW(Kgs)	241/314 (wood packing) /290( paper packing)
Performance
Temperature range	-40～-86℃
Ambient temperature	16-32℃
Cooling performance	-86℃
Climate class	N
Controller	Microprocessor
Display	10‘’HD Intelligent touch screen
Refrigeration
Compressor	2pcs
Cooling method	Direct cooling
Defrost mode	Manual
Refrigerant	High stage: R290, Low stage: R170
Insulation thickness(mm)	L/R:130,B:130
Construction
External material	Cold rolled steel
Inner material	Stainless steel
Shelves	3(stainless steel)
Access port	2pc. Ø 25 mm
Casters	4+(2 leveling feet)
Data Logging/Interval/Memory capacity	USB/Record every 5 minutes / 10 years
Backup battery	Yes
Alarm
Temperature	High/Low temperature,High ambient temperature,Condenser overheating
Electrical	Power failure , Low battery, Battery Level Detection Fault Alarm, High pressure alarm
System	Sensor failure,Communication error, Door ajar, High-Stage High Temperature Alarm
Accessory
Freezer rack model	ZKML304-552B-CT
Freezer rack/box (quantity）	12/300
