New Arrival 2℃~8℃ Pharmacy / Medical Refrigerator Lab Refrigerator YC-466TL

• New Generation 2℃~8℃ Pharmacy Refrigerator

• Temperature Uniformity ±1℃

• Low Energy Consumption 1kWh/24H


• 4.3 Inch Screen for Easy Use

Request A Quote Downloads
Overview

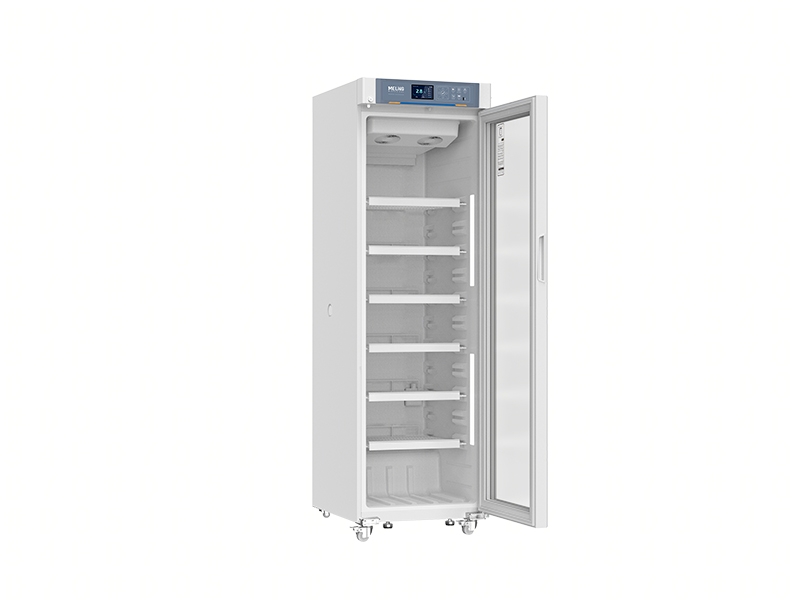

Meling 2℃～8℃ Pharmacy refrigerator YC-466TL is specially designed for storing sensitive materials in pharmacies, medical offices, laboratories, clinics, or scientific institutions. It is produced in quality and durability, and meets the stringent guidelines demands for medical and laboratory grade. YC-466TL medical fridge provides you with 466L of interior storage with adjustable 6 shelves (Optional Bottom Baskets and Drawers) for high efficient capacity storage. This medical / lab refrigerator is equipped with high –precision microcomputer temperature control system and ensures the temperature range in 2℃～8℃.



Real Air Cooling

The multi-duct vortex refrigeration system and fined evaporator can prevent frosting completely and improve temperature uniformity to a large extent.



Real Energy Saving
Low energy consumption 1kWh/24h, which meets the requirement of ENERGY STAR Version 2.0.



Real Visibility
The electrical heating + LOW-E design with double considerations can achieve a better anti-condensation effect for the glass door.



Real Safety
7 temperature probes can ensure high precision of temperature control.
Features



  • Self-closing door with 90° stop,automatically close and convenient for access
  • 4.3'' screen display with buttons, 0.1℃ precision, temp curve can be viewed directly, equipped with Max/Min temp check and alarm test function
  • Integrated data logger can store the temp and alarm data,and standard with USB port for data export
  • Backup battery can maintain real-time temperature display and alarms for  24 hours in case of power failure
  • The interior lighting system with  LED light ensures high visibility inside the cabinet.
  • A test port is available for bringing convenience to users in testing temperature inside the cabinet.
  • Large capacity of 466L for maximum storage convenience to store vaccine, drugs, reagents, and other lab / medical materials.

Scope of Application

This 2℃～8℃ Pharmacy  Vaccine refrigerator YC-466TL is suitable for storage of biological products, vaccines, drugs, reagents, and more. You can apply the lab / pharmacy fridge in pharmaceutical factories, hospital, centers for disease prevention and control, clinics, and others.

Scope of Application  Product Brochure Download

Please click the OneDrive link to download the product brochure: Product Brochure- Meling Biomedical

Specifications
2~8℃ Pharmacy Refrigerator
Model YC-466TL
Cabinet type Upright
  Capacity(L） 466
Internal size(W*D*H)mm/ inch 502*600*1678/ 19.76*23.62*66.06
External size(W*D*H)mm/ inch 595*748*1980/ 23.43*29.45*77.95
Package size(W*D*H)mm/ inch 670*800*2010/ 26.38*31.5*79.13
NW(Kgs) 92/100
Performance
Temperature range 2~8℃
Ambient temperature   16~32℃
Cooling performance 5℃
Climate class N
Controller Microprocessor
Display 4.3 inch HD intelligent touch screen
Refrigeration
Compressor 1pc
Cooling method Air cooling
Defrost mode Automatic
Refrigerant R600a
Insulation thickness(mm) L/R:50, B:50
Construction
External material PCM
Inner material    HIPS
Shelves 6 ( Drawers optional)
Door lock with key Yes
Lighting LED
Access port   1pc. Ø 23 mm
Casters 4 casters(2 casters with brake)+2 leveling feet
Data logging/Interval/Export USB/Record every 5 minutes/ Max. 12 months via USB port
Backup Battery Yes
  Interface Remote Alarm Contact , RS485
Alarm
Temperature High/Low temperature, High ambient temperature, Condenser overheating
Electrical Power failure, Low battery
System Sensor error, Door ajar, Communication failure
Electrical
Power Supply (V/Hz)
220~240V;50/60Hz
Rated Current( A) 2.5A
