2℃~8℃ Pharmacy / Medical Refrigerator Lab Refrigerator YC-650CL

•Eddy Current Full Air Cooling Multi - duct design

•UL/CE Certified

•Temperature Uniformity 2.6℃

•7"LCD Touch Screen

•ENERGY STAR Certificate

•Automatic Door Heating System

Request A Quote Downloads

Overview

Meling 2℃～8℃ Pharmacy refrigerator YC-650CL is specially designed for storing sensitive materials in pharmacies, medical offices, laboratories, clinics, or scientific institutions. It is produced in quality and durability, and meets the stringent guidelines demands for medical and laboratory grade. YC-650CL medical fridge provides you with 650L of interior storage with adjustable 5 shelves for high efficient capacity storage. This medical / lab refrigerator is equipped with high –precision microcomputer temperature control system and ensures the temperature range in 2℃～8℃. And it comes with 1 high-brightness digital temperature display ensuring the display precision in 0.1℃.

Real Air Cooling

The multi-duct vortex refrigeration system and fined evaporator can prevent frosting completely and improve temperature uniformity to a large extent.

Real Energy Saving

The refrigerator is equipped with “M + Energy Core” power management system and complete air cooling design, improving energy saving efficiency by more than 40%.

Real Visibility

The electrical heating + LOW-E design with double considerations can achieve a better anti-condensation effect for the glass door.

Real Safety

6 temperature probes can ensure high precision of temperature control with nearly no fluctuation and thus can improve safety.

Features

Six temperature probes can ensure high precision of temperature control with nearly no fluctuation and thus can improve safety.
Equipped with a USB export interface, which can be used for storing data from the last month to the current month automatically in PDF format.
With a U-disk connected, the temperature data can be stored continuously and automatically, in more than 2 years.
The interior lighting system with double LED lights ensures high visibility inside the cabinet.
A test port is available for bringing convenience to users in testing temperature inside the cabinet.
Large capacity of 650L for maximum storage convenience to store vaccine, drugs, reagents, and other lab / medical materials.
100% CFC free design for environment friendly with no ozone-damaging chemicals.
Pharmacy refrigerator with aluminum plate with spraying Inner Material（Optional stainless steel liner）

Scope of Application

This 2℃～8℃ Pharmacy Vaccine refrigerator YC-650CL is suitable for storage of biological products, vaccines, drugs, reagents, and more. You can apply the lab / pharmacy fridge in pharmaceutical factories, hospital, centers for disease prevention and control, clinics, and others.

Product Brochure Download

Please click the OneDrive link to download the product brochure: Product Brochure- Meling Biomedical

Specifications

2~8℃ Pharmacy Refrigerator
Model	YC-650CL
Cabinet type	Upright
Capacity(L）	650
Internal size(WDH)mm	6057251515
External size(WDH)mm	7159411985
Package size(WDH)mm	7739472154
NW(Kgs)	157/185
Performance
Temperature range	2~8℃
Ambient temperature	16~32℃
Cooling performance	5℃
Climate class	N
Controller	Microprocessor
Display	HD intelligent touch screen
Refrigeration
Compressor	1pc
Cooling method	Air cooling
Defrost mode	Automatic
Refrigerant	R290
Insulation thickness(mm)	L/R:55, B:55
Construction
External material	PCM
Inner material	Stainless steel/Aluminum plate with spraying (optional)
Shelves	5 (coated steel wired shelf)
Door lock with key	Yes
Lighting	LED
Access port	1pc. Ø 25 mm
Casters	4 (2 casters with brake)
Data logging/Interval/Memory capacity	USB/Record every 5 minutes/10 years
Door with heater	Yes
Alarm
Temperature	High/Low temperature, High ambient temperature
Electrical	Power failure, Low battery
System	Sensor error, Door ajar, Built-in datalogger USB Failure, Communication failure, Condenser overheating
Accessories
Options	Chart Recorder
Standard accessory	RS485, Remote alarm contact, Backup battery

Download

YC-650CL.pdf

Related Products

2℃~8℃ Pharmacy/Medical Refrigerator Vaccine Refrigerator YC-1320CL

•Leading air cooling performance •Energy saving efficiency improved 40%+ •Electrical heating door for better anti-condensation effect •6 sensors for high precision of temperature control •Intelligent audible and visible alarm system

New Arrival 2℃~8℃ Pharmacy / Medical Refrigerator Lab Refrigerator YC-466TL

• New Generation 2℃~8℃ Pharmacy Refrigerator • Temperature Uniformity ±1℃ • Low Energy Consumption 1kWh/24H • 4.3 Inch Screen for Easy Use

2~8℃ Undercounter Pharmacy/Medical/Vaccine Refrigerator YC-130L

•True Air Cooling Technology •UL/CE Certified •SNAP/EPA List HC Refrigerant •41.8dB(A) Noise. •2 years Temp Data Recording •Automatic Door Heating System

2℃~8℃ Benchtop or Undercounter vaccine refrigerator Pharmacy Refrigerator YC-75L

•Intelligent control and constant temperature •3 sensors to promise effective performance •Secure alarm system brings more security •High-efficiency evaporator •Advanced air cooling structure design

Class IIA2 Biological Safety Cabinet BSC1530-IIA2 for Lab

Cutting-edge control technology High-precision wind speed sensor High-configuration, maintenance-free EBM independent fan U15 ultra high efficiency filter compliant with EN 1822 standard Filteration efficiemcy for particles with a diameter of 0.12 μm ≥99.9995% 10° tilted window design

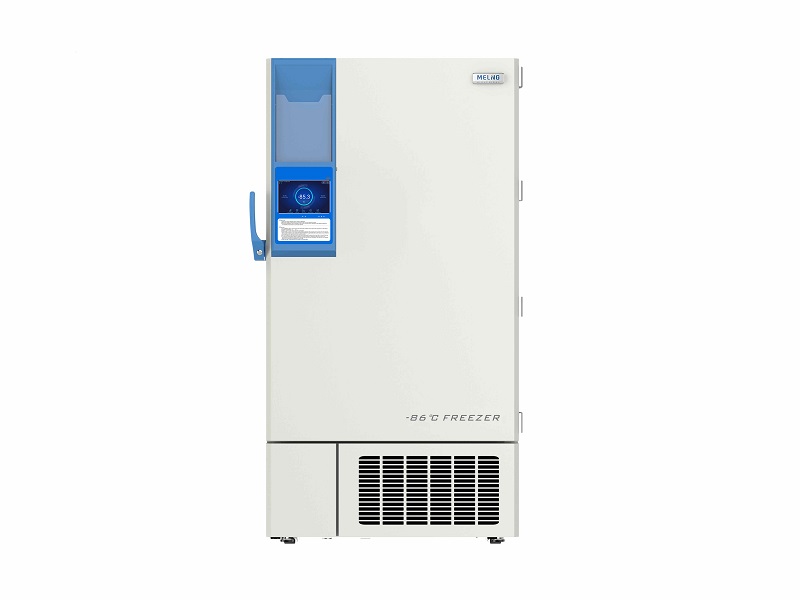

Meling -86°C Ultra Low Temperature Freezer DW-HL528D
