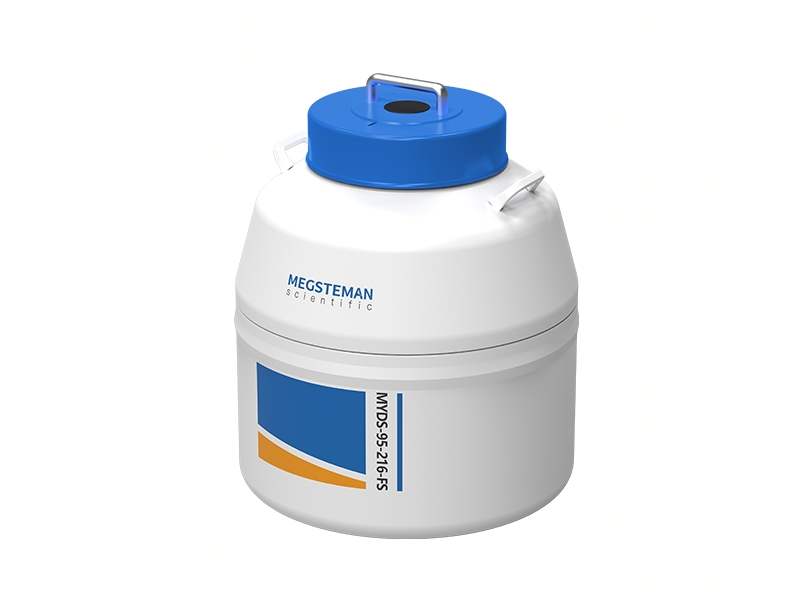

New Arrival Aluminum Liquid Nitrogen Tank LN2 MYDS-95-216-FS for Laboratory

New Arrival Aluminum Liquid Nitrogen Tank LN2 MYDS-95-216-FS for Laboratory

Special durable aluminum construction, compact and lightweight
Low Liquid Nitrogen Consumption
Low Heat Transfer Design
Standard Multi-layer Square Buckets

Overview

The professional liquid nitrogen tank is suitable for users such as scientific research institutes, laboratories,reproductive centers, disease control centers, etc. who need to store reagents,vaccines, embryos and other biological samples in a low-temperature environment for a long time.medical and health industries, scientific research laboratories of universities and colleges as well as other fields.

Special durable aluminum construction, compact and lightweight
The cryoracks and boxes are markes to help users to find the samples quickly and efficiently.

Optional transport carts in various specifications are available for easy tank mobility.

Features

Low Liquid Nitrogen Consumption: High-vacuum insulation technology & wrapped multilayer insulation can easily achieve low energy consumption. Some productscan achieve a minimum static evaporation rate of 0.33L/D and a maximum static liquid nitrogen storage of 202D.

Low Heat Transfer Design: Special insulated connection between the inner and outer tanks, narrow-neck design, special fiberglass material to block the heat conduction inside and outside the liquid nitrogen tank, achieve cliff-like insulation of the inner and outer tanks, and ensure uniform temperature inside the tank.

Standard Multi-layer Square Buckets:Specially designed for biological sample storage, especially for medical and biological research fields. Storage products large capacity, occupy a small space.

Multi-product Options:The 125 and 216mm diameters can be combined with 100 to 7,000 2mL standard cryotubes to perfectly match laboratory needs. A variety of products are available, and there is a long-term storage design to easily take and place samples.

Scope of Application

Meling Liquid Nitrogen Tank suitable for medical and health industries, scientific research laboratories of universities and colleges as well as other fields.

Specifications

Meling Liquid Nitrogen Tank
Model	MYDS-95-216-FS
Geometric volume(L)	95
Caliber(mm)	216
Square bucket size(mm)	139*141
Square bucket box size(mm)	132*132
Number of square bucket layers	5
Quantity of 2ml external revolve tube	2430
Quantity of 2ml internal revolve tube	3000
Square bucket quantity	5
Height	840
Outer diameter (mm)	678
Empty weight(kg)	45
Lock cover	Standard
Bucket	Standard
Cryobox	Standard
Smarter stopper	Opention
Transport trolley	Opention
