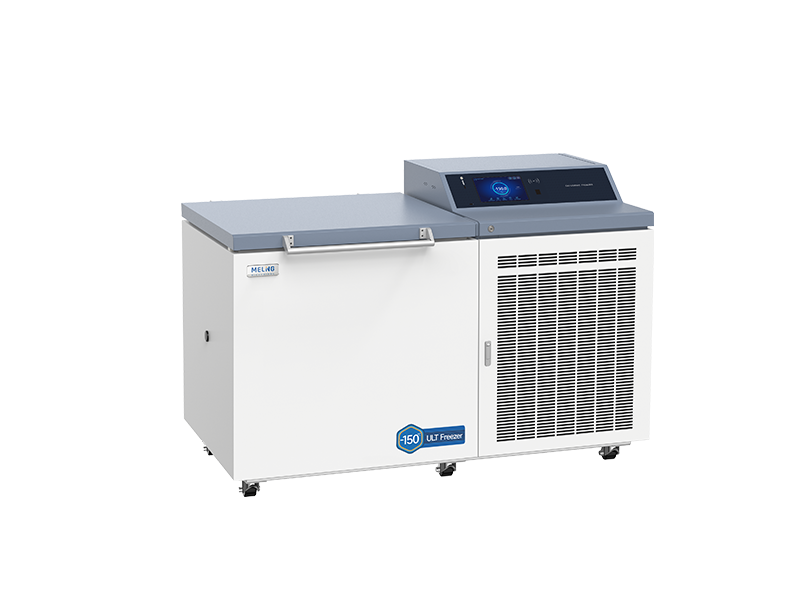

-150℃ Cryogenic Freezer Ultra Deep Freezer DW-UW128C

•Targeted refrigeration with high-efficient cooling system

•High-precision temperature control system

•Well-developed audible and visual security system

•VIP vacuum three-dimensional thermal insulation

• 10 inch LCD touch screen

Request A Quote

Overview

Meling -150℃ cryogenic freezer DW-UW128C deep freezer has unique, high-efficient and recycling cooling system, a winner of the top second-class national prize in technological invention. With DW-UW128C, the company becomes the superior leader in the same industry that can produce the lowest temperature to -150℃ and can mass produce the products.

The cryogenic freezer is designed for applications for ultra-low temperature scientific experiments, and long term preservation of cells,DNA, bacteria, ect.

Features

Temperature uniformity: 1.8℃
Unique, high-efficient and recycling cooling system, a winner of the top second-class national prize in technological invention.
The turn-on delay and stopping interval protection function can ensure reliable operation.
The keyboard lock function and password protection function can prevent any adjustment of operating parameters without permission
Unique two times foaming technology, super thick VIP insulation which greatly improves the insulation effect； VIP vacuum insulation board, tightly locks the cold air to ensure the great insulation effect.

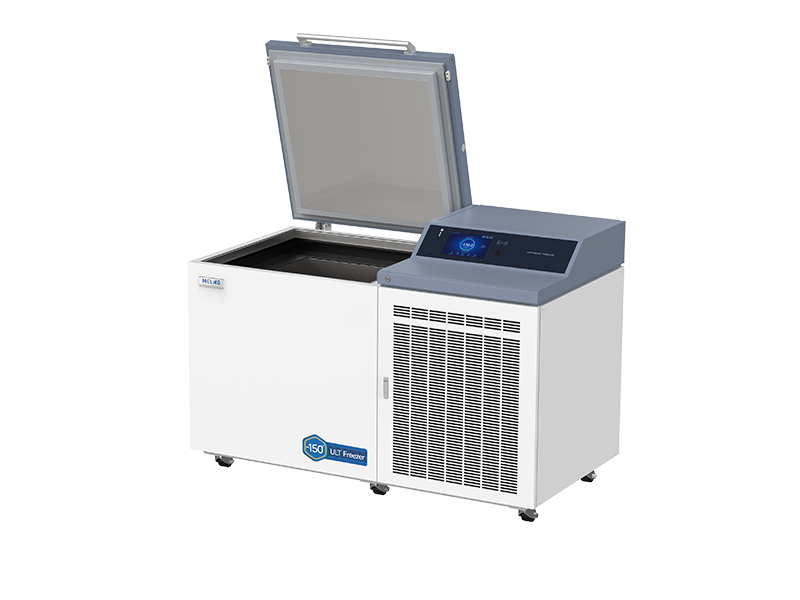

Chest type with lid to be opened from the top, assisting balanced hinges to make it easily Casters can be fixed for easy movement and fixation.

Scope of Application

Application to scientific research, low temperature test of special materials, freeze skins, DNA/RNA, bones, bacteria, sperm and biological products etc. Suitable for use in hospitals, sanitation and anti-epidemic stations, biological engineering, laboratories in colleges & universities, military enterprises and so on.

Product Brochure Download

Please click the OneDrive link to download the product brochure: Product Brochure- Meling Biomedical

Specifications

- 150℃ Cryogenic Freezer
Model	DW-UW128C
Capacity(L)	128
Internal size(WDH)mm	510460540/ 20.0818.1121.26
External size(WDH)mm	17109781160/ 67.3238.545.67
NW/GW (KG)	388/530
Performance
Temperature range	-110～-150℃
Ambient temperature	16-32℃
Cooling performance	-145℃
Climate class	N
Controller	Microprocessor
Display	Touch screen
Refrigeration
Compressor	1pc
Cooling method	Direct cooling
Defrost mode	Manual
Refrigerant	Mixture gas
Insulation thickness(mm)	D:100 L/R:200 B:200
Construction
External material	Cold rolled steel
Inner material	Stainless steel
Casters	6
Access port	1pc. Ø 40 mm
USB interface, Remote alarm contact ,RS485	Yes
Alarm
Temperature	High/Low temperature, condenser overheating,
Electrical	Power failure , low battery, battery power detection failure,
System	Sensor error, door ajar, system failure, communication failure
Power
Power (V/Hz)	220/50
Rated current (A)	27.6
