2℃~8℃ Ice Lined Refrigerator Medical Refrigerator YC-275EW

•Constant temperature under intelligent control

•Well-developed audible & visual alarm

•High-efficiency Freon-free refrigeration

•Meling Ice Lined Refrigerator with PQS certification

•4-digit LED high-brightness digital display

Request A Quote

Overview

Constant Temperature under Intelligent

Meling Ice Lined Refrigerator High-precision micro-processed temperature control system: The cabinet has built-in high-sensitivity temperature sensors, ensuring a constant temperature inside it;

Security System

The well-developed audible & visual alarm system (high and low temperature alarm, sensor failure alarm, power failure alarm, low battery alarm, etc.) makes it safer for storage.

Turn-on delay & stopping interval protection; The door is equipped with a lock, preventing it from unauthorized opening;

High-efficiency Refrigeration

Equipped with environmentally-friendly Freon-free refrigerant and compressor supplied by an international famous brand, the refrigerator is characterized by fast refrigeration and low noise.

Human-oriented Design

Power on/off key (the button is located on the display panel);

Power-on delay time setting function;

Start-delay time setting function (solving the problem of simultaneous startup of batch products after power failure);

Features

4-digit LED high-brightness digital display enables users to set temperature within a range from 2~8℃, and the precision of temperature display reaches 0.1℃
Equipped with environmentally-friendly CFC Refrigerant and compressor supplied by an international famous brand, the refrigerator is characterized by fast refrigeration and low noise
The built-in door handle can prevent damage during transportation and save space
There are 4 universal wheels and 2 caster with brake, which makes it can be moved and fixed easily

Scope of Application

Suitable for storage of biological products, vaccines, drugs, reagents, etc. Suitable for use in pharmacies, pharmaceutical factories, hospitals, centers for disease prevention & control, clinics, etc.

Product Brochure Download

Please click the OneDrive link to download the product brochure: Product Brochure - Meling Biomedical

Specifications

2~8℃ Ice Lined Refrigerator
Model	YC-275EW
Cabinet type	Upright
Capacity(L)	275
Internal size(WDH)mm	1019465651
External size(WDH)mm	1245775964
Package size(WDH)mm	13288101120
NW/GW(Kgs)	103/128
Performance
Temperature range	2~8℃
Ambient temperature	10-43℃
Cooling performance	5℃
Climate class	SN、N、ST、T
Controller	Microprocessor
Display	Digital display
Refrigeration
Compressor	1pc
Cooling method	Direct cooling
Defrost mode	Manual
Refrigerant	R290
Insulation thickness(mm)	L/R:110, B:110
Construction
External material	Sprayed steel plate
Inner material	Stainless steel
Coated hanging basket	4
Door lock with key	Yes
Backup battery	Yes
Casters	4
Alarm
Temperature	High/Low temperature
Electrical	Power failure, Low battery
System	Sensor failure

Download

Related Products

2℃~8℃ Ice Lined Refrigerator Medical Refrigerator YC-150EW

•Constant temperature under intelligent control •Well-developed audible & visual alarm •High-efficiency Freon-free refrigeration •4-digit LED high-brightness digital display

WHO PQS Approved 2℃~8℃ Ice Lined Refrigerator YC-125EW

For vaccine storage, in compliance with WHO PQS , CE, RoHs and Calibration test Ambient temperature: 5~43℃ Freeze protection : Grade A Holdover time: 83h7min Eco-friendly HC refrigerant Dual cooling systems, dual reliability

2℃~8℃ Pharmacy / Medical Refrigerator Lab Refrigerator YC-400L

•Leading air cooling performance •Energy saving efficiency improved 40%+ •Electrical heating door for better anti-condensation effect •7 sensors for high precision of temperature control •Intelligent audible and visible alarm system

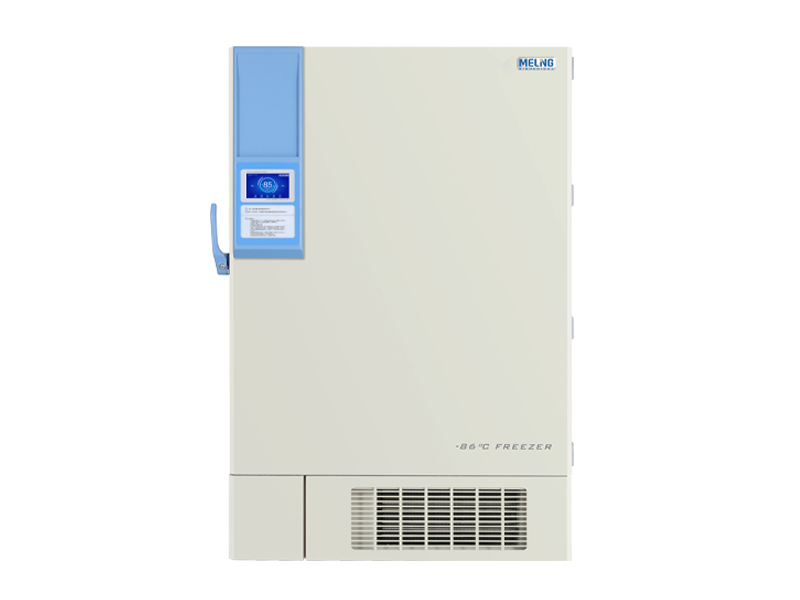

Meling -86°C Ultra Low Temperature Freezer DW-HL528D
