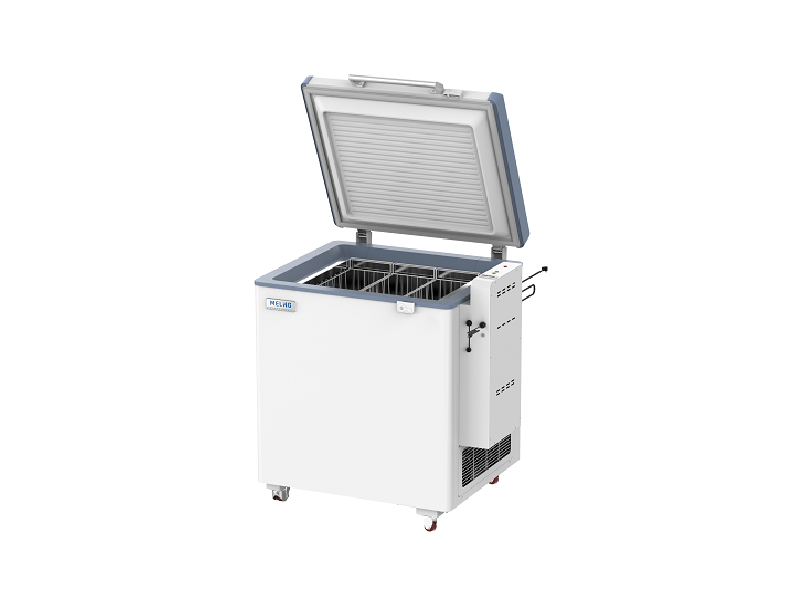

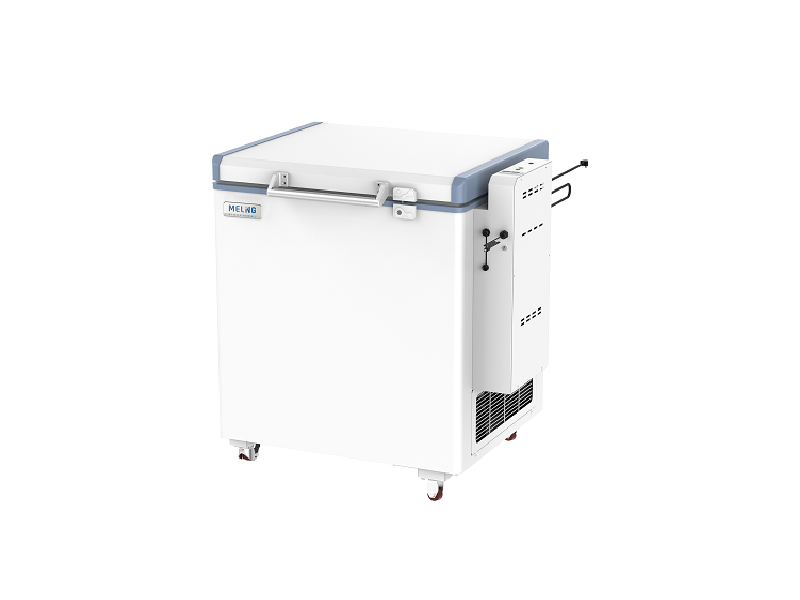

WHO PQS Approved 2℃~8℃ Ice Lined Refrigerator YC-125EW

For vaccine storage, in compliance with WHO PQS , CE, RoHs and Calibration test
Ambient temperature: 5~43℃
Freeze protection : Grade A
Holdover time: 83h7min
Eco-friendly HC refrigerant
Dual cooling systems, dual reliability

Request A Quote Downloads

Overview

Temperature Control

Electronic temperature controller, digital display with 0.1℃ precision,and the control range is 2-8℃,besides,the Solar powered display panel shows the temperature through natural light sources.

Dual Systems, Dual Reliability

When the temperature has been stabilized to 2~8℃, one refrigeration system can also maintain the same holdover time.

Safety Guard

The well-developed alarm system (high and low temperature alarm, sensor failure alarm, high ambient temperature etc.) makes it safer for storage.

Data logger

The appliance has a Data Logger that complies with "WHO/PQS/E006/DL01" and "WHO/PQS/E006/DS01"

USB type-C interface, can be used to download the PDF data for last 60 days and History Data folder and power supply from external devices to the logger in the event the logger’s energy storage is depleted.

Human-oriented Design

Ergonomic aluminum alloy handle for easy door opening

the door hovers with a 30°-60°door-opening angle, convenient for users to store and take out vaccines/samples.

The ice packs are in the foaming layer,do not need to inject or replenish water into the product, more convenient for users.

Features

For vaccine storage, in compliance with WHO PQS , CE, RoHs and Calibration test
Ambient temperature: 5~43℃
Freeze protection : Grade A
Holdover time: 83h7min
Eco-friendly HC refrigerant
Dual cooling systems, dual reliability
Stainless steel liner,Easy to clean and durable
Standard with 5 baskets convenient for storage of different vaccines
Compressor status indicator,It will light up when the compressor works, otherwise it will be off.
Standard with 2 universal casters with brakes and 2 fixed casters,convenient for movement and fixation.

Scope of Application

It is commonly used for storing vaccines, medicines, and other temperature-sensitive medical supplies, especially in areas with unreliable electricity supply.

Product Brochure Download

Please click the OneDrive link to download the product brochure: Product Brochure- Meling Biomedical

Specifications

2~8℃ Ice Lined Refrigerator
Model	YC-125EW
Capacity(L）	150
Internal size(WDH)mm	558436589.5
External size(WDH)mm	929834(781 after the door open)966
Package size(WDH)mm	10008851141
NW(Kgs)	134/162
Performance
Temperature range	2~8℃
Ambient temperature	5-43℃
Type of exterior door	Foam door
Vaccine storage volume (L)	95
Vertical/ Horizontal storage type	Horizontal
Display	LED
Refrigeration
Compressor	2 pcs
Refrigerant	R600a
Construction
External material	Sprayed steel
Inner material	Stainless steel
Baskets	5
Door lock	Yes
RS485	Yes
Casters	4
USB interface/Data logging /USB data default export record	Yes (Type C)/ Record every 15 mins/ PDF data for last 60 days and history data folder
Number of exterior door	1
Alarm
Temperature	High/Low temperature; high ambient temperature alarm
Electrical	Sensor failure alarm, low voltage alarm
System	Main control board communication failure
Electrical Data
Power supply (V/Hz)	AC 220-240V, 50/60Hz
Rated current (A)	1.4A
Power rating (W)	220W

Download

User manual for YC-125EW(C).pdf
