Home / Cold Chain / Ultra Low Freezer / TwinShield -86℃ ULT Freezer / -86°C Ultra Low Freezer Freezer DW-HL1008T
-86°C Ultra Low Freezer Freezer DW-HL1008T -86°C Ultra Low Freezer Freezer DW-HL1008T -86°C Ultra Low Freezer Freezer DW-HL1008T

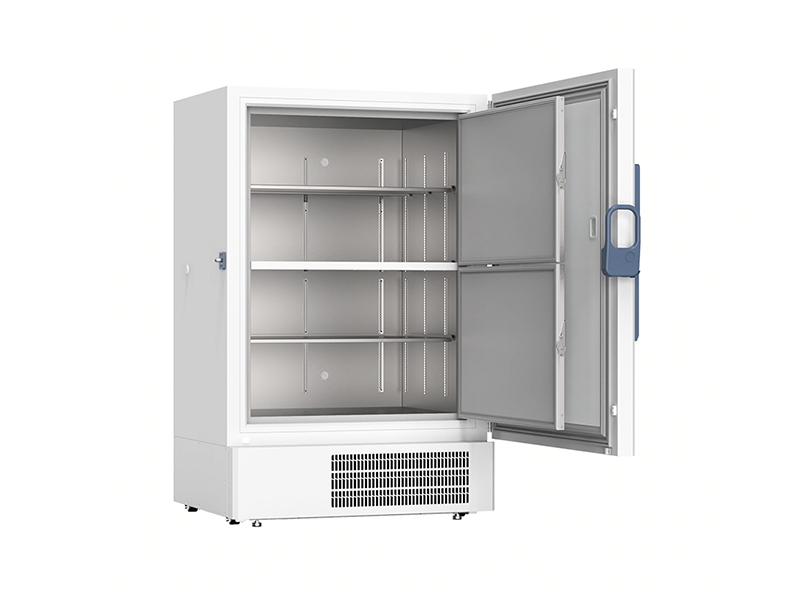

-86°C Ultra Low Freezer Freezer DW-HL1008T

•Two high-efficiency refrigeration systems

•10 inch LCD touch screen

•VIP insulation foaming

•Multiple alarm functions

Request A Quote Downloads
Overview

 -86℃ Ultra Low Temperature Freezer DW-HL1008T built up by two independent refrigeration systems, and the Dual Cooling Systems offers the highest level of protection, only one system work can maintain the freezer around the -75℃. Valuable and irreplaceable samples can always be securely with the highest confidence even if the compressor fails.



Two High-efficiency Refrigeration Systems

Dual Cooling Systems offers the highest level of protection.  Valuable and irreplaceable samples can always be securely stored with the highest confidence.



Environment Friendly

Employs natural hydrocarbon refrigerants in full compliance with U.S. SNAP and EU (EU_517/2014) environmental regulations. All manufacturing foaming agents are strictly controlled to meet eco-safety standards.



User Interface and Functionality

-USB port for data transfer, event logs, and system diagnostics
-Switchable ℃/℉ display modes for user convenience
-Setup wizard and on-screen temperature mapping for simplified configuration
-WIFI/5V power supply interface/Network interface
-RS485 interface compliance to MODBUS protocol is able to transfer data with


Features



  • Dual Cooling Systems offers the highest level of protection.  Valuable and irreplaceable samples can always be securely stored with the highest confidence.

  • Temperature uniformity 3℃

  • 281min  pull down to -80℃

  • High-definition and easy-handling control panel to set the temperature range from -40°C to -86°C with digital temperature display precision in 0.1°C

  • Lockable door, keyboard lock and password access prevents any unauthorized access and operation

  • China's leading manufacturer of ultra-low temperature freezer

Scope of Application  Scope of Application

Ultra low deep freezer DW-HL1008T can be used as laboratory freezer, ultra low medical freezer and deep freezer，suitable for use in hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities, military enterprises, deep-sea fishing companies, etc.

Scope of Application  Product Brochure Download

Please click the OneDrive link to download the product brochure: Product Brochure- Meling Biomedical

Specifications
-86℃ Ultra-low Temperature Freezer
Model    DW-HL1008T
  Capacity(L) 1008
Internal size(W*D*H)cm/inch 1022*696*1378 / 40.24*27.40*54.25
External size(W*D*H)cm/inch

1362*1025*1994/ 53.62*40.35*78.50
Package size(W*D*H)mm/Inch   1473*1155*2176 / 58.0*45.5*85.7
NW(Kgs) 390
Performance
Temperature range -40～-86℃
Ambient temperature 16-32℃
Cooling performance -86℃
Climate class N
Controller Microprocessor
Display 10‘’HD Intelligent touch screen
Refrigeration
Compressor 2pcs
Cooling method Direct cooling
Defrost mode Manual
Refrigerant HC
Construction
External material

Cold rolled steel
Inner material Galvanized sheet (Optional stainless steel)
Shelves 3(stainless steel)
Access port 2pcs. Ø 25 mm
Casters 4 (2 leveling feet)
Data Logging/Interval/Memory Capacity USB/Record every 5 minutes / 10 years
Backup battery Yes
Alarms
Temperature High/Low temperature,High ambient temperature,Condenser high temperature alarm
Electrical Power failure , Low battery,Battery power detection failure,High presure
System Data communication failure, Door ajar, Temperature sensor failure,AB system failure
Electrical
  Power (W) 220-240/50
  Rated Current(A) 11.2
Others
  Certification CE
Download
